Yagi 941 Antenna

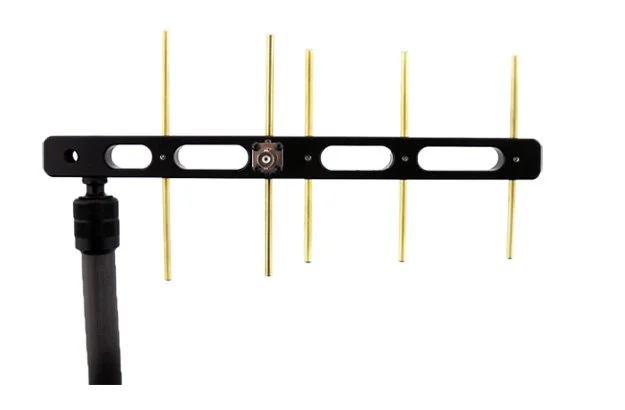

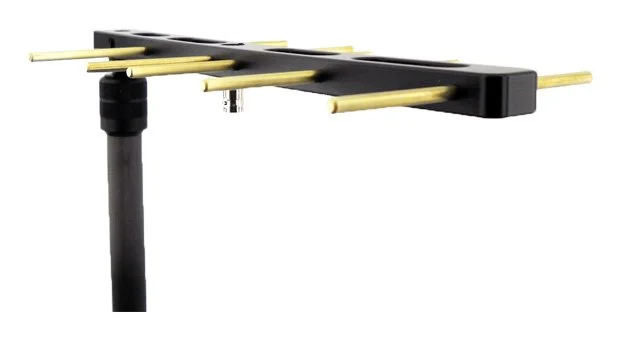

The PSC 941 Yagi Antenna is designed to be used with Lectrosonics™ receivers operating in the 941 Block frequencies. This new antenna design is the result of hundreds of hours of design engineering and testing. The overall design is relatively small and compact and is constructed using professional grade materials. The beam of the antenna is CNC machined from Delrin and the elements are machined from solid brass for years of trouble-free operation in the field. This Yagi antenna operates from 940Mhz to 960Mhz and thus covers the entire 941 Block of frequencies. This antenna will provide approximately 9dB of gain over that of a typical dipole antenna. It contains two 3/8-16 threaded mounting points allowing vertical or horizontal polarization mounting options. A 50 ohm BNC output connection is standard.

• Frequency Range of 940Mhz to 960 Mhz

• Works as a Passive High Gain Antenna

• Excellent RF Performance

• Approximately 9 dBd Gain

• Weather Resistant Design

• BNC Output Connector

• Competitively priced, and Made in the U.S.A

Download Product Manual (PDF)

PSC #FYAGI941

Overall Size including BNC: 12” x 6” x 1.25”
(30.5cm x 15cm x 3cm)

Weight: 6.4oz (180 gm)

Number of Elements: 5 Total ( 3 Director, 1 Driven, 1 Reflector)

Frequency of Operation: 940Mhz to 960Mhz

Gain: Approx. 9dBd

Connector: BNC

Boom Material: Delrin, Black

Element Material: Solid Brass 0.187” diameter (4.75mm)

Warranty: 1 Year, Limited
