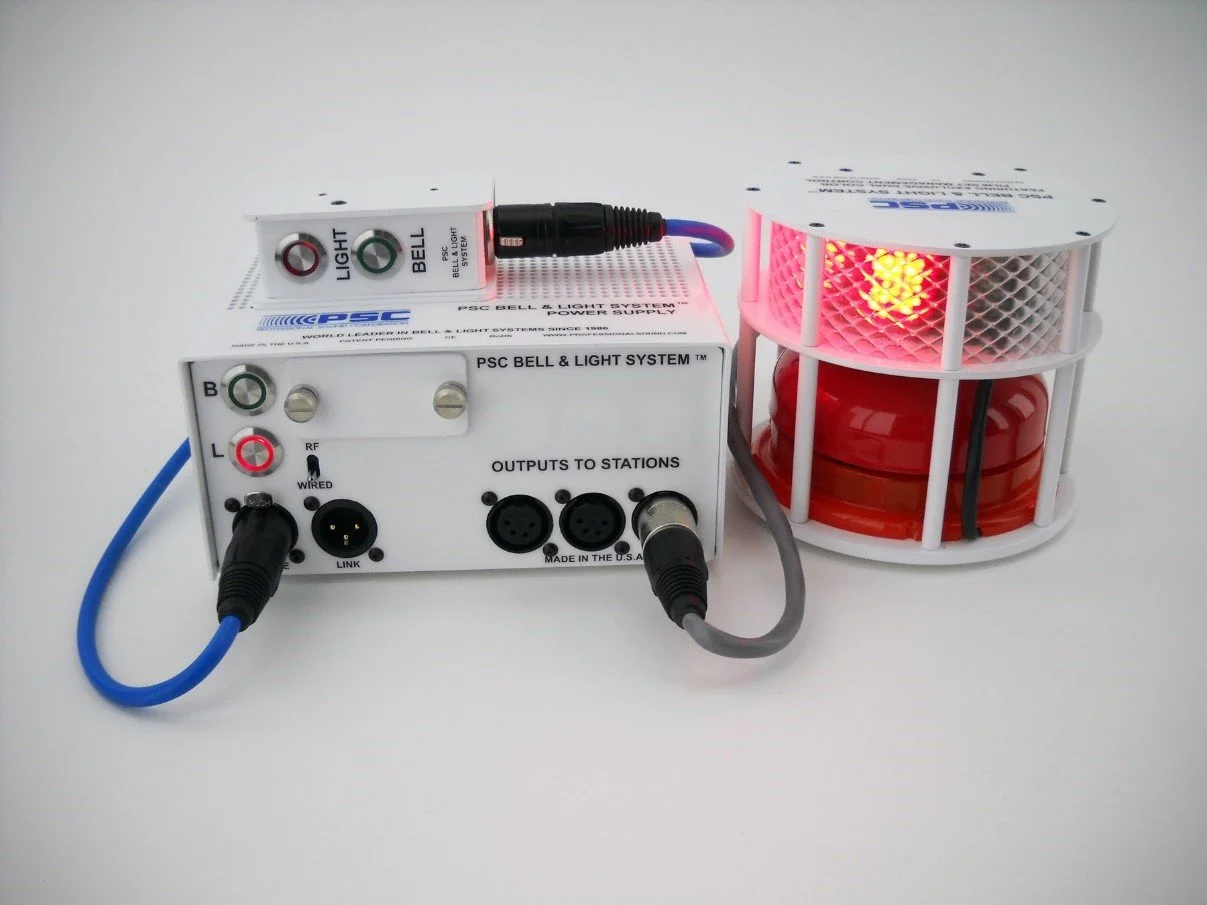

Bell & Light System
Station Features
Dual Color Mode for Easy Set Traffic Coordination...PSC Exclusive Feature
Omni View, 360 Degree Visibility...PSC Exclusive Feature
Most Compact Stations in the Industry...PSC Exclusive Feature
Most Rugged Stations in the Industry...PSC Exclusive Feature
3-Way Flash Speed...PSC Exclusive Feature
3-Way Mounting Threads, ¼-20, 3/8-16 and 5/8-27 (Mic Stand Thread)…PSC Exclusive Feature
Switchable Bell…PSC Original Feature
Link Connector for Easy Daisy Chain Connections…PSC Original Feature
Power Supply Features
Most Compact Power Supply in the Industry…PSC Exclusive Feature
Operates up to 80 Stations…PSC Exclusive Feature
Can be Operated Four Ways, Wired Manual, Wired Automatic, Wireless Automatic, Recorder Driven Wired Fully Automatic…PSC Exclusive Feature
Fully Automatic Mode Self Generates Bell Start and Stop Pulses…PSC Exclusive Feature
Optional Wireless Remote with Extreme Security and One Mile Range…PSC Exclusive Feature
Controller Features
Smallest Controller on the Market…PSC Exclusive Feature
Belt Clip Provided, and 3 Positions to Mount the Belt Clip…PSC Exclusive Feature
Made in the USA Stainless Steel Flush Push Button Switches…PSC Exclusive Feature
Uses Standard XLR Microphone Cables for Extensions…PSC Exclusive Feature
A Word about PSC Bell and Light Systems:
PSC has been designing and producing portable Bell and Light Systems for over 30 years. During these 30+ years, we have designed and engineered several generations of Bell and Light System designs. Each new generation improves upon the previous design. Our latest (4th generation) Bell and Light System is by far the best system on the market. It offers new features never before found in Bell and Light Systems and takes the overall product to a whole new level.
Bell and Light Station:
Dual Color Mode for Easy Set Traffic Coordination. It works like a traffic light, red means Stop, Green means Go.
Omni View, 360 Degree Visibility. Our Competitor’s station only offers marginal 180 degree viewing, our station can be viewed a full 360 degrees.
Most Compact Stations in the Industry. This means you can pack, store and ship more stations in one Pelican case than any other brand.
Super Rugged Housing Design. Our Station design includes a full, built in “roll cage” for industrial strength “field tested” ruggedness in a compact package. Our robust station design will in fact support several thousand pounds!
3-Way Flash Speed, from a soothing slow speed to an attention demanding fast flash rate, the choice is yours. Each station offers an individually selectable flash rate.
3 Different Mounting Thread Standard. Our Bell and Light Stations come standard with three different mounting threads. These include ¼”-20, 3/8”-16 and 5/8”-27 which is compatible with common microphone stands.
Switchable Bell, this feature was originally offered on our 3rd generation systems and is a PSC original feature.
Link Connector, this is another feature originally brought to you by PSC and featured in our previous generation systems. It is used to allow easy and convenient, “Daisy Chain” wiring of the Bell and Light Stations.
Power Supply:
Dual Color Mode for Easy Set Traffic Coordination.This feature originates in our Power Supply and requires the use of our new Dual Color Stations.
Most Compact Power Supply in the Industry.Our Power Supply is a full 20% smaller than any of our competitors.
Operates up to 80 Stations.Yes, even though it is the most compact power supply in the industry, our power supply will operate up to 80 of our stations. That is a nearly 3x more stations than any competitor.
Four Way Operation.Wired Manual, Wired Fully Automatic, Wireless Automatic, Recorder Driven Wired Fully Automatic. These features alone make PSC the obvious choice.
Fully Automatic Mode:Self Generates Bell Start and Stop Pulses. Upon activation at the start of a take on a film set (automatic modes) the power supply generates one long blast of the bell while simultaneously starting the lights. At the end of the take, when the direct yells “cut” the power supply turns the lights from Red to Green and then give two short blasts of the bell. These timing functions are controlled and generated automatically. This fully automatic mode is available when driven directly from specific recorders or via our option wireless remote control.
Link Connector,this is another feature originally brought to you by PSC and featured in our previous generation systems. It is used to allow easy and convenient, “Daisy Chain” wiring of additional Power Supplies for use in very large systems.
Optional Wireless Remote.Our optional wireless remote control system frees up the operator from being tied to a cabled remote control. Our system uses Lynx TM Technology to provide both extreme range, reliability and security. This system is pre-programmed with an 80-bit encryption security key for trouble free operation anywhere. This system also offers up to a one-mile operational range
Controller:
Smallest Controller. Yes, our remote control is the smallest, most rugged unit on the market.
Belt Clip Provided. The Stainless Steel Belt Clip can be mounted in one of three convenient positions.
Stainless Steel Flush Push Button Switches. We researched, tested and use only the best, Made in the USA Flush Mount Switches.
Standard XLR Microphone Cables for Extensions. PSC originated this standard for wired remote controls. Need a longer remote control cable? Simply plug in another XLR microphone cable.
Power Supply
PSC #FBL2PS
Size: 6.800” x 5.200” x 3.25” (17.25cm x 13.2cm x 8.3cm)
Weight: 2.2 Lbs (1Kg)
Input Power: 90 to 264Vac, 47 to 63Hz
Output Power: 13.8Vdc Nominal
Control Functions:Bell Push Button Switch, Light Push Button, Switch, Manual or
Automatic Toggle Switch, Wired or RF Toggle Switch
Station Capacity: 80 Stations!
Housing Material: 6061-t6 Aircraft Aluminum
Finish: Gloss White, High Durability Powder Coat
Warranty: 1 Year, Limited

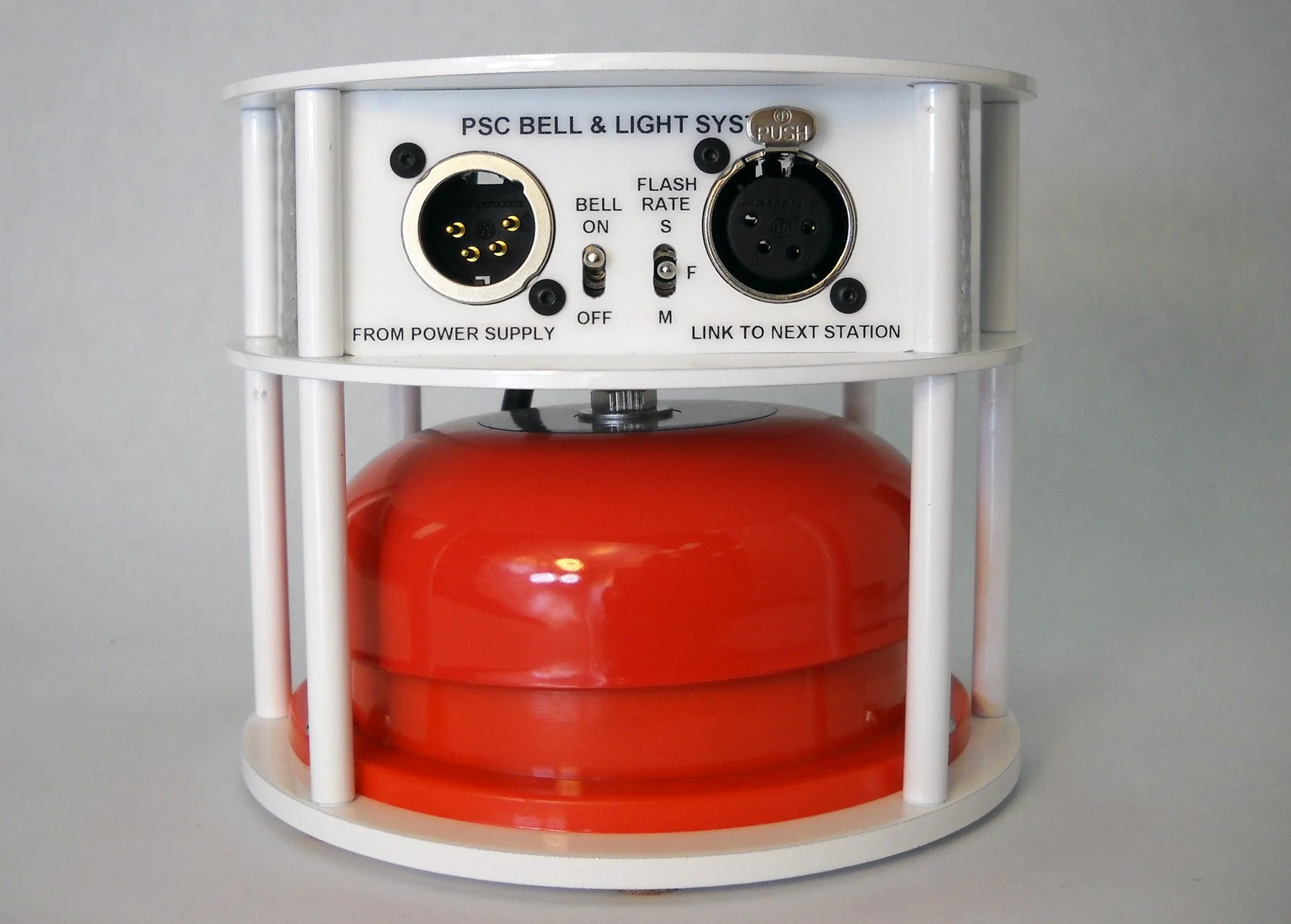

Stations
PSC #FBL2S
Size: 5.250” x 5.250” x 4.475” (13.3cm x 13.3cm x 11.4cm)
Weight: 1Lb, 12oz (0.8Kg)
LED Color: Tranquil GREEN, Vivid RED
Flash Rate: User Selectable, 1Hz, 2Hz or 4Hz
Bell Disable: Toggle Switch
Housing Material: 6061-T6 Aircraft Aluminum
Finish: Gloss White, High Durability Powder Coat
Warranty: 1 Year, Limited

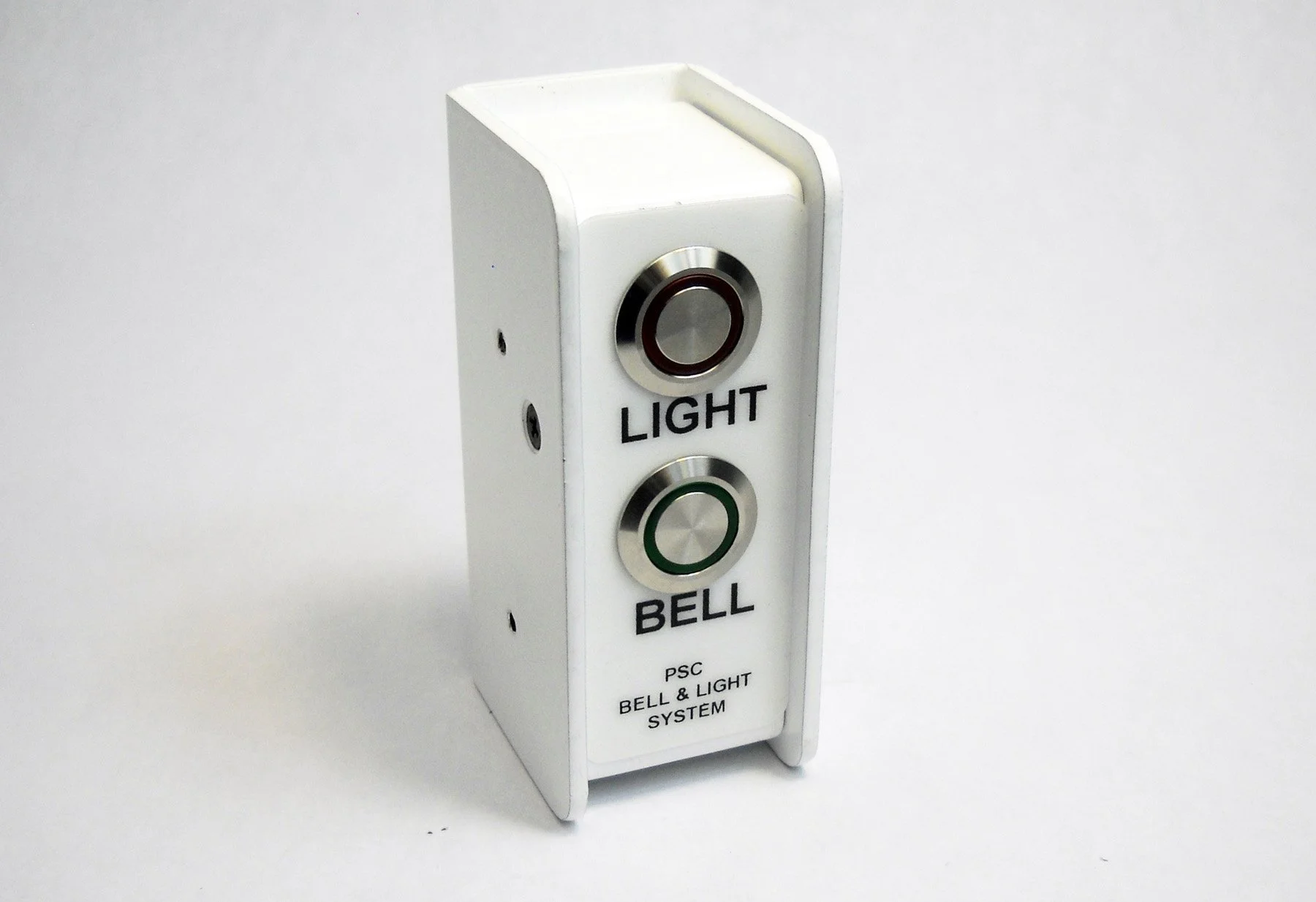

Controller:
PSC #FBL2C
(10 cm x 5 cm 4 cm)Size3.300” x 1.375” x 1.725”
(8.3cm x 3.5cm x 4.4cm)
Weight: 5.2oz (140gm)
Switches: Stainless Steel, Flush Mount, Push Button w/LED Lighting Ring
Belt Clip: Stainless Steel
Housing Materia: l6061-T6 Aircraft Aluminum
Finish: Gloss White, High Durability Powder Coat
Warranty: 1 Year, Limited
Features & Specifications subject to change.
