RF 12 PACK

We are pleased to introduce our new PSC RF 12 Pack. This new design operates from a Smart Battery. It provides space for up to six (6) Slot Receivers for 12 channels of analog audio. The design provides RF Distribution, Remote Antenna Powering, Regulated 12Vdc Power Distribution to power your other gear, built in Smart Battery Charging (AC power supply included), RF Flow Through Ports, Smart Battery Metering, and four (4) USB Power Outputs. These units are being offered with three different RF bandpass filter options: “Single Band” 470 - 700Mhz, “Dual Band” 470 – 618Mhz or “Wide Band” 450 – 960Mhz. All units can also be ordered with the optional Aaton Digital Interface (Hydra System) installed. This allows receiver communication with the Cantar X3 and Cantar Mini as well as some software programs running on laptops. A special thank you goes out to the Aaton Company for working with us with their Hydra Digital Interface.

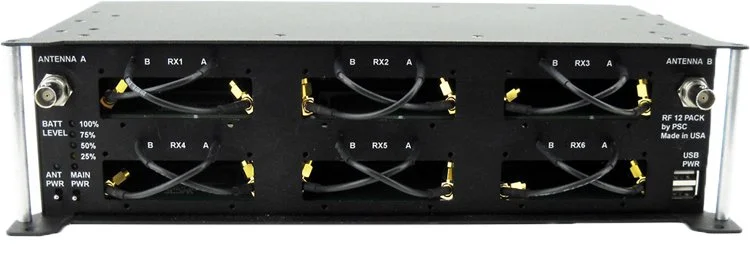

  • Supports up to 6 Slot Receivers

  • Provides RF Distribution

  • Provides Remote Antenna Power

  • Smart Battery Slot for Rechargable Operation

  • Built in Power Management/Charging Circuitry

  • Built in DC Power Distribution

  • RF “Flow Through” Outputs

  • Multi Color LED Smart Battery Fuel Gauge

  • Mutiple Threaded Mounting Points

Part Number:

RF12PSBRF 12 Pack “Single Band” 470-700Mhz

RF12PDBRF 12 Pack “Dual Band” 470-618Mhz and also 940-960Mhz

RF12PWBRF 12 Pack “Wide Band” 470-960Mhz

RF12PSBAIRF 12 Pack “Single Band” with Aaton Interface

RF12PDBAIRF 12 Pack “Dual Band” with Aaton Interface

RF12PWBAIRF 12 Pack “Wide Band” with Aaton Interface

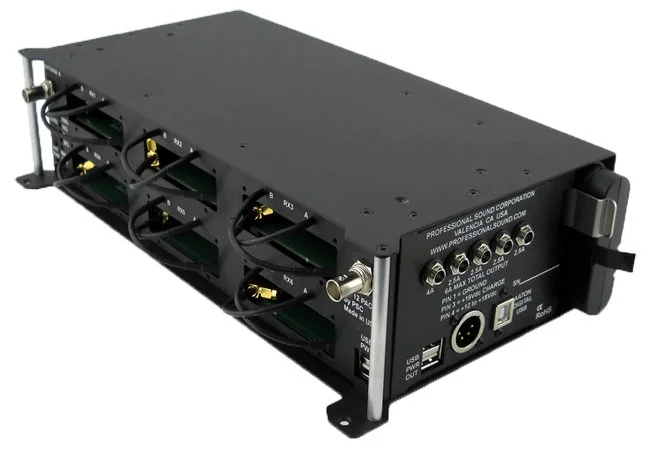

Specifications: Size 13” x 6.5” x 3.3” (33cm x 16.5cm 8.3cm)

Weight: 4 Lbs (1.8Kg)

Housing Material: Aircraft Aluminum

Housing Finish: Black Anodize Type II, Black Powder Coating

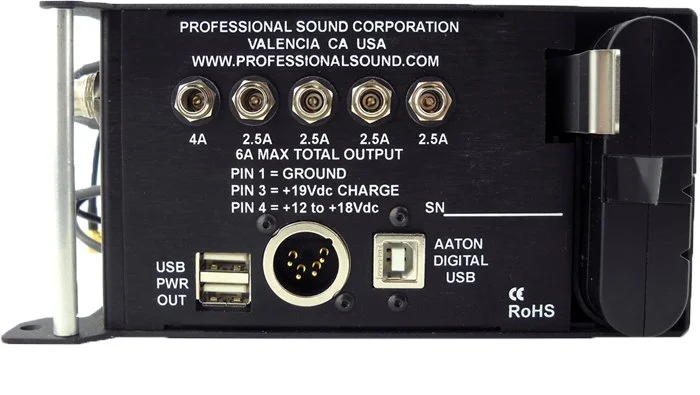

External Power, No Battery Charging: 12-16Vdc, 1.4 Amps nominal, 8 Amps Maximum
Pin 1 = Ground, Pin 4 = +12 to +16Vdc

External Power, For Battery Charging: 19Vdc, (7.9 Amps Minimum Power Supply Rating)
Pin 1 = Ground, Pin 3 = +19Vdc

RF Inputs: BNC Connectors, 50 Ohm

RF Outputs: SMA Connectors, 50 Ohm

RF Frequency Range: 470Mhz to 700Mhz

DC Power Outputs: Co-axial Power Connectors (Switchcraft 712A)
1 x 4 Amp, 4 x 2.5 Amps, 6 Amps Total Maximum

Audio Output Connectors: TA3M Mini XLR Male connectors, balanced signal x12)
DB-25 Female Connectors, balanced signal (x2) ADAT wiring standard

Rechargable Battery: Smart Battery, 98 Watt/hour or 99 Watt/hour
Built in 4 Amp charger

Warranty: 1 Year, Limited

Features & Specifications subject to change.
