Pelican LiFE

  • 12.8 Volt 20 Amp Hour 256 Watts

  • Volt and Current Meter

  • Small Pelican 1150 Case

  • 7.25 Lbs

  • SpeakOn Output Connector

  • 4 Pin Female XLR Output Connector

  • Internal Battery Protection Electronics

  • Built-in Charging Port

  • Optional PSC Pelican LiFE Battery Charger Available

  • Works With PSC Power Products

  • Works With Most Lead Acid Battery Chargers

  • Two Year LiFE Cell Warranty, the Best in the Business!

This 3rd generation LiFE battery represents a tremendous leap in technology from our previous designs. This new rechargeable battery pack is rated at 12.8 volts and 20 amp hours. It may be used with our PowerMax Ultra, PowerStar LiFE (rack mount version), PowerStar EuroLiFE, or our PowerStar LiFE Zeus. This new design is now equipped with a charging port for use with our optional PSC Pelican LiFE Battery Charger. The small size and weight of this battery make it perfect for powering small cart setups as well as for using as an add on battery to our bigger power systems.

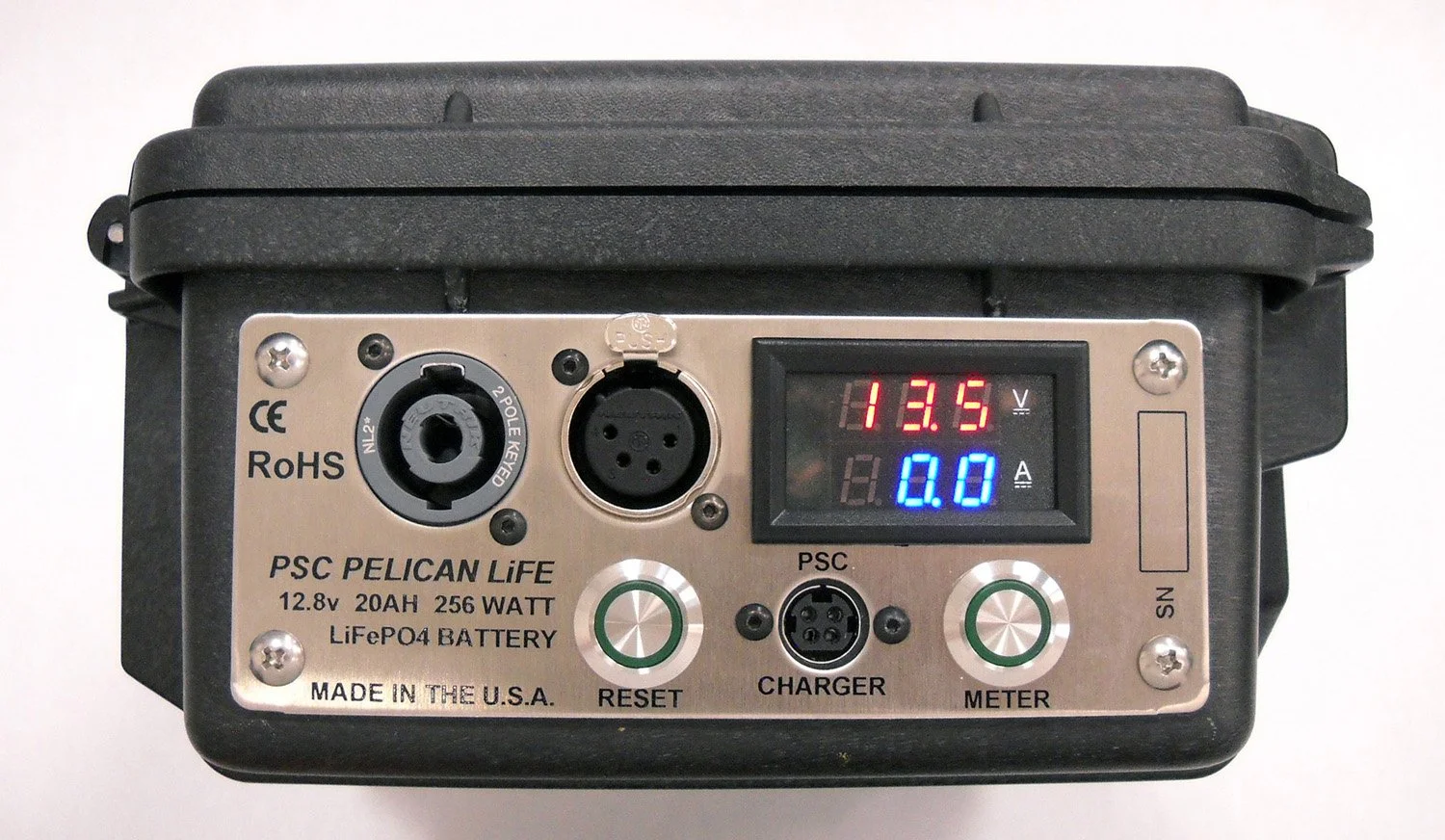

This new Pelican LiFE battery is built in a rugged Pelican 1150 case that measures only 9.25” x 7.5” x 4.375” (23.5cm x 19cm x 11cm). The entire product weighs just 7.25lbs (3.3Kg). Our design uses special cells allowing higher than normal charge and discharge rates. The Pelican LiFE battery is rated at up to 25 amps of discharge or charge current. Internally it contains active electronics to protect the cells against deep discharge, overcharging, excessive high discharge rates (short circuit) and excessive charging rates. In addition, the electronics provide cell balancing while charging for longer cell life. Included is a built-in Battery Volt Meter and Output Current Meter to provide you with useful information, both SpeakON and 4 Pin Female XLR output connectors and a battery protection re-set switch. Additionally, we warranty our LiFE cells to a full two years, the longest in the industry !


Optional Pelican LiFE Battery Chargers

  • Fast, 7.5 Amp Charge Rate

  • 2 Stage Charging Characteristics

  • Universal AC Input for World Wide Use

  • Built-in Active PFC Function, PF>0.97

  • Green Certified, No Load Power Consumption < 0.5 watt

  • 3 Pole AC Input, Uses Common IEC320-C14 Power Cable

  • Built-in Protection: Short Circuit, Overload, Over Voltage, Over Temperature

  • Cooling by Free Air Convection

  • Fully Enclosed, Engineered Plastic Case

  • 2 Color LED Indicator for Charging Status

  • World-wide Approvals: TUV, UL, PSE, CB, FCC, CE

  • 1 Year Warranty

Specifications:

PSC # FPSC0023LIFECP

Size: 9.25" x 7.5" x 4.375"
(23.5cm x 19cm x 11cm)

Weight: 7.25 lbs (3.3 kg)

Chemistry: Lithium Iron Phosphate (LiFEPO4)Rated Capacity12.8 Volts @ 20 Amp Hours (256 watts)

Temperature Range: -4F to 140F (-20C to 60C)

Output Connectors: SpeakON 2 Pole (Mating connector Neutrik NL2FC)
XLR, 4 Pin Female

Charging Connector: 4 Pin Din

Meters: Voltage and Output Current

Maximum Charge / Discharge Rate: 25 Amps

Warranty: Electronics and Case, 1 year, Limited LiFE cells, 2 Years, Limited
