Baby Zeus

Compact and Reliable Power for your Smaller Carts and Stage Boxes

20 Amp Hour LiFEPO4 Battery
12 Amp High Reliability AC Power Supply/Charger
One 6 Amp Output, Seven 3 Amp Outputs
Properly Engineered System Cooling
Rapid Recharge LiFEPO4 Battery
Exclusive PSC Silent Power Technology
4 Amps of USB Charging Power Available

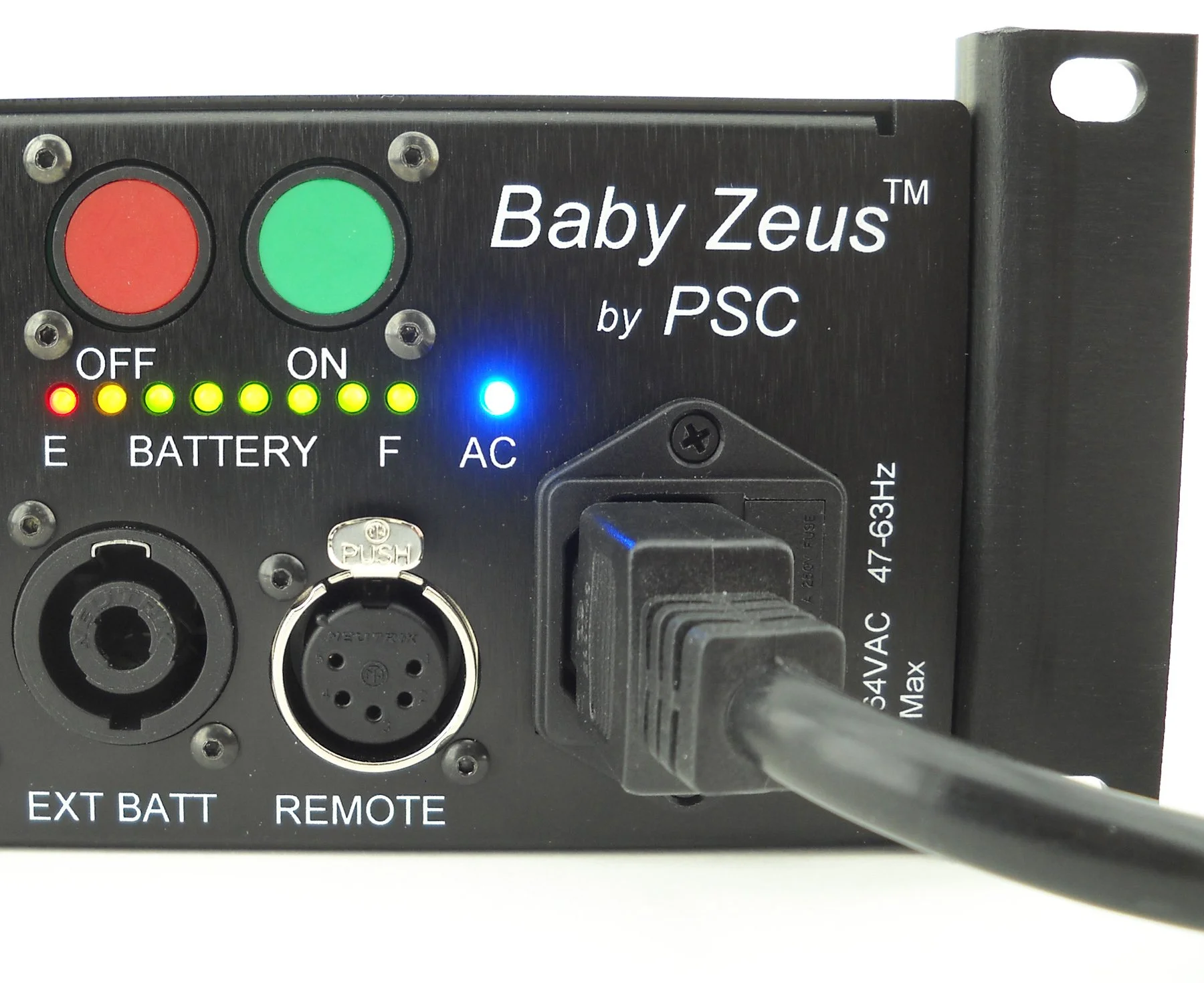

Convenient multi-Colored battery “Fuel Gauge”
Built in Battery Cell Balancing for Longer Battery Life
Reversible, Offsetable Rack Mount Brackets
PSC has Been Providing Reliable Power Solutions Since 1986

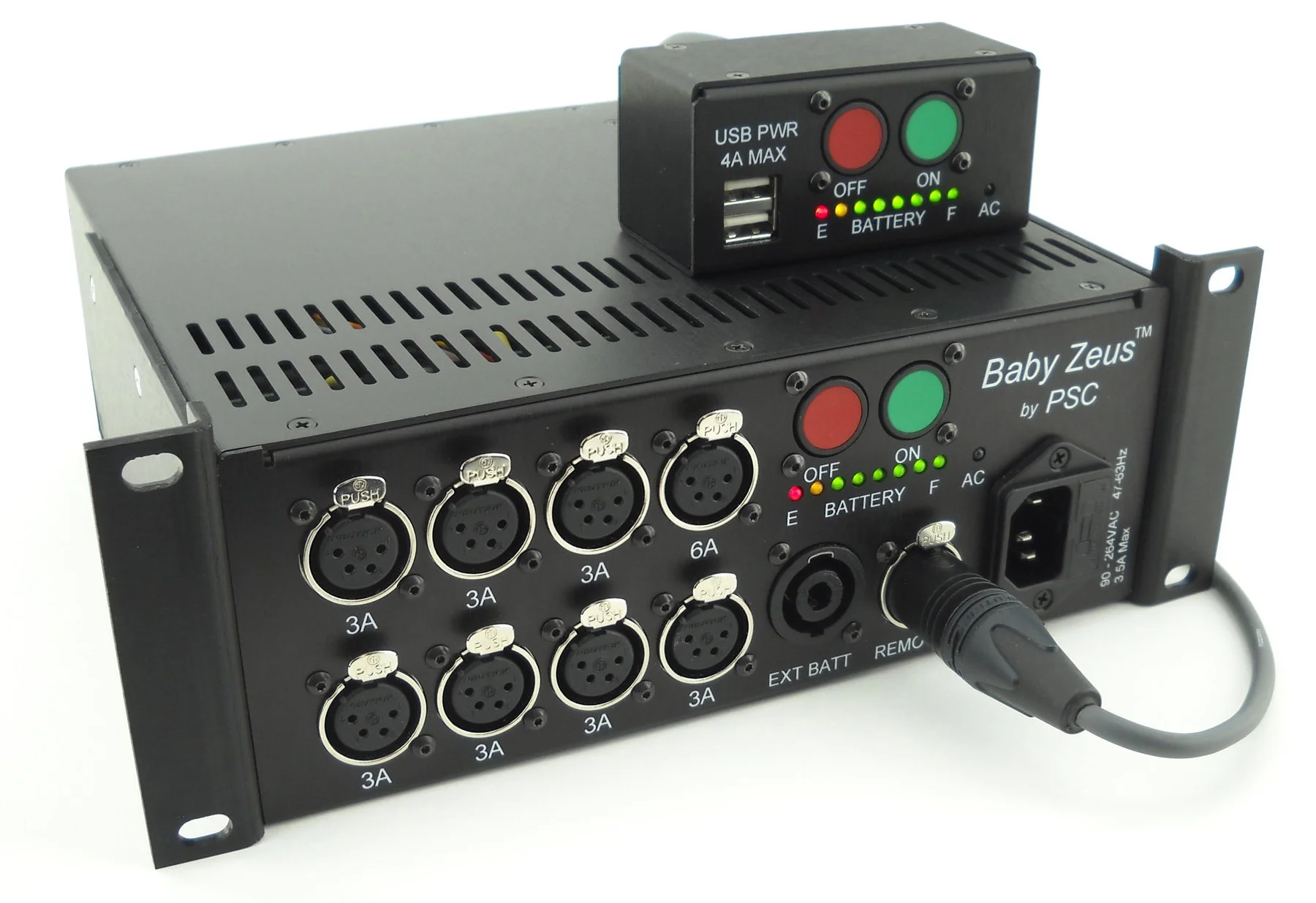

The PSC baby Zeus is our new, compact power distribution product. Engineered using our 35 years of power supply experience, this new single rack space rechargeable power supply will provide you with the ultimate power solution for your small sound cart or remote stage box.

LiFE BATTERY PACK:

The heart of the system is our custom, 12.8 volt, 20 amp hour Lithium Iron Phosphate battery pack. The individual cells were chosen for their high capacity, and ability to be rapidly charged or discharged. While other cells can only be charged and discharged at a 0.7C amp hour rate, ours are rated at a full 3C rate. Additionally, our cells are factory measured, graded and matched into precision sets for a better-quality battery. Unlike other brands, the PSC LiFE battery pack contains built in cell balancing electronics for a long life.

AC SUPPLY and CHARGER:

The PSC Baby Zeus is built around a highly integrated 300 watt, switching power supply. The AC input is fully filtered for both common mode and differential noise, harmonic content and spikes. We designed and built in a current limiting function to further protect our power supply under extreme conditions. In addition, our charger has been designed to provide clean, quiet charging power so as to not cause you noise problems in the field.

POWER DISTRIBUTION and OUTPUT FILTERING:

The DC path of our Baby Zeus has been designed to provide clean, quiet, reliable DC power for all of your audio and video equipment needs. Each output has its own dedicated output filter that contains both audio and RF frequency filters. Each output is also individually Poly-fuse protected. There are a total of eight outputs: One (1) 6 Amp Output and seven (7) 3 Amp Outputs. To lower internal power losses and extend battery life, our circuit boards are made with 4oz copper, 4 times the industry standard and a PSC exclusive feature!

REMOTE CONTROL METER:

Every PSC Baby Zeus comes with a small remote control box. The use of the remote control allows the PSC Baby Zeus to be mounted down and out of the way on your sound cart if desired. This remote contains an additional set of “On and Off” controls, an additional battery level meter and also two (2) USB charging ports. The PSC Baby Zeus can be operated with or without the remote-control box.

COOLING:

The PSC Baby Zeus is cooled using a very low noise, slow turning fan for years of trouble-free use in the field under various temperature extreems.

RACK MOUNTING:

The PSC baby Zeus is equipped with multiple point rack rail mounting brackets. These brackets can be mounted from either the front or the rear of the baby Zeus and can be “Offset” mounted for ease of cable and connector management.

Download Product Manual (PDF)

PSC # FBZ

Size: 8.5” wide, 8.50” deep, 3.5” high (22cm x 21cm x9cm)

Weight: 9lbs (4Kg)

Temperature Range: Use: -4F to +124F (-20C to +50C)

AC Input: 90 – 260Vac, 47Hz -63Hz

Outputs: 1x 6 Amp, 7 x 3 Amp

Output Voltage: 12.8Vdc Nominal

Output Current: On LiFEPO4 Battery, 20 Amps. AC only, 12 Amps

Charging Time: Typical Cart 1.5 hours, No Load (all equipment off)

USB Charging Port: 2 Ports, Total Output 5Vdc at 4 Amps

LiFE Battery Capacity: 12.8 Volts @ 20 Amp Hours (256 watts)
